General Purpose Digital Pressure Gauge
|
• |
0.25% Full Scale Terminal Point Accuracy |
|
• |
5 Digit LCD Display with Large 12.2 mm (0.48") Digits |
|
• |
20 Segment Bar Graph Display |
|
• |
User-Selectable Engineering Units |
|
• |
MIN/MAX Readings |
|
• |
Tare Function Standard |
|
• |
Environmentally Protected to NEMA 4X (IP65) |
|
• |
All Stainless Steel Wetted Parts |
|
• |
Rubber Boot Standard
|

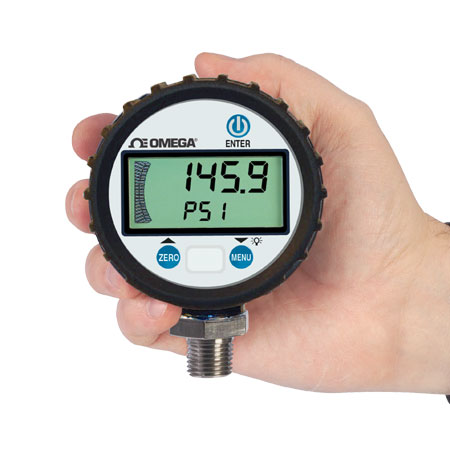

The DPG8001 Series digital pressure gauges offer 0.25% full scale terminal point accuracy in a rugged easy-to-use unit and is price comparable to that of mechanical test gauges. All Stainless Steel wetted parts make them suitable for a wide variety of industrial liquids and gaseous media. This series features user-selectable engineering units, allowing one gauge to be used for a variety of pressure scales. The DPG8001 comes standard with many features that are either not available or extra cost options on many competitive digital gauges such as a tare, 20 segment bar graph MIN/MAX Memory, 9 selectable engineering units and backlighting for easy reading.
SPECIFICATIONS
Accuracy: 0.25% FS terminal point
Ranges: Vacuum through 25,000 psi gauge, vacuum and compound gauge
Battery: Two “AA” alkaline included
Battery Life: 2000 hr. minimum
Battery Indicator: 4 levels
Storage Temperature: -20 to 80°C (-4 to 176°F)
Operating Temperature: -20 to 60°C (-4 to 140°F)
Temperature Effects: 0.04%/°F (-20 to 180°F) zero and span
Update Rate: 1 Hz
Cycle Life: 100 million
Vibration: MIL-STD-202G Method 201A
Shock: MIL-STD-202G Method 213 B
Display: 5-digit numeric top line, 5 character alphanumeric lower line
Bar Graph: 20 segment vertical bar graph
Digit Height: 12.2 mm (0.48") upper line; 6.1 mm (0.24") lower line
Display Indicators: 4-segment battery life indicator plus dedicated icons for gauge timer, backlight timer, tare, min and max
View Angle: 12 o’clock
Backlight: Standard, blue
Enclosure Material (Case and Back): Polycarbonate/ABS
Window: Polycarbonate
Enclosure Rating: NEMA 4X (IP65)
Protective Boot: Standard
Serial Number: Yes
Proof Pressure
Vac to <300 psi: 200% range
300 to <5000 psi: 150% range
5000 to 25,000 psi: 120% range
Burst Pressure
Vac to <300 psi: 800% range
300 to <5000 psi: 500% range
5000 to 25,000 psi: 300% range
Keypad Functions
3 Key with Multi Press Functionality
On/Off: Power symbol and enter
Zero: Zero, tare, and scroll up arrow
Menu: access, backlight, down arrow
Engineering Units: psi, bar, inHg, cmHg, mmHg, kPa, mPa, kg/cm2, ftH2O, custom units available
Agency Approvals: CE (heavy industrial), ASME B40.7, RoHs, UL 61010/cUL pending
Connection: 1/4 NPT male, lower position up to 10,000 psi
>10,000 psi: 9/16-18 UNF Female AMINCO
Dimensions: 27 mm Hex (11/16")
Wetted Parts: 17-4 SS & 316L SS laser welded
|
