| OS3750 Series IR Pyrometer |
|
Two-Color and Single Color Handheld Infrared Pyrometers
|
• |
High Functionality Models Available: Dual 2-Color and Single Color Wide Range, Single Color/High Range, Single Color/Mid-Range |
|
|
• |
InGaAs Element Used to Reduce Influence of Emissivity and Provide High Sensitivity and High Accuracy Measurement |
|
|
• |
Measured Value Is Digitally Displayed in the Viewfinder and on Front Panel |
|
|
• |
Target Size of 20 mm (0.8") Can be Measured at a Distance of 4 m (13') |
|
|
• |
By Connecting a K-Type Surface Thermocouple, You Can Measure Low Temperature Surfaces and Compensate for Emissivity |
|
|
• |
Small Size (148 W x 100 H x 70 mm D) and Weight (350 g) Make Long-Term Measurement Easy |
|
|
• |
500 Readings Maximum Can Be Stored and Replayed |
|
|
• |
Maximum, Minimum and Average Value Math Functions Available |
|
|
• |
Peak and Hold Readings |
|
|
The OS3750 Series is a small, lightweight handheld thermometer with a clear viewfinder. The thru-the-lens optical system enables it to measure small targets from a long distance. The measured value can be read on the internal digital display in the viewfinder. Three models are available.

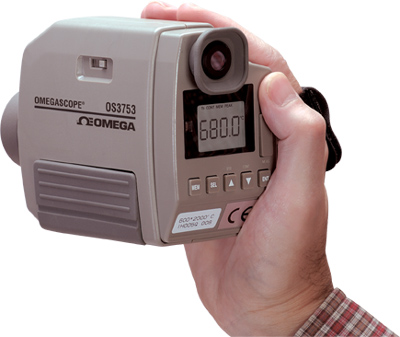

The OS3753 IR Pyrometer combines the functions of a 2-color and single color wide range pyrometer in one model. The OS3751 is a single-color medium temperature range model, and the OS3752 is a single-color high temperature range model.
The OS3750 Series can be mounted on a tripod or when there is no room for a tripod, on a fixed location by a universal head (sold separately).
OS3750-SOFT Datalogging Software Datalogging software is available for easy data processing by a personal computer. Three kinds of data management modes are available: real-time trend mode, multi-point monitoring mode by utilizing memory, and 1-point historical trend mode. Graph display, report creation, printing, and data storage can be easily executed. The export of the measured data to worksheet applications is also possible.
Caution: This product and all in the series are not for use in medical evaluations. These products cannot be used to measure body temperature. They are meant for industrial and scientific purposes.
|
Model Number |
OS3750-SOFT |
|
Environment |
OS Windows 95/98NT/ME/XT (minimum 10 MB is required to install) |
|
Media |
CD-R (2m of RS-232C cable with D-Sub 9 pins female connector is attached) |
|
Readout |
Readout of transmitted data by RS-232C from OS3750 Series |
|
Functions |
Display on a personal computer. Data storage and replay. Printer output |
|
Graphic Display |
640 x 480 dots (initial), 1024 x 768 (resized by a personal computer) |
|
Measurement Mode |
Real-time trend mode. Multi-point monitoring mode, 1-point trend mode |
|
|
Real-time Trend |
Multi-Point
Monitoring (30 points) |
1-Point Trend
(500 data) |
|
Readout of
Data Stored |
· Real-time trend graph (in real-time trend logging mode)
· Alarm summary |
· Readout of monitoring data up to 30 point
· Creation of reports (table, graph)
· Input of measurement place name and settings of high/low alarms are enabled on each measurement place
· Grouping each 5-point on table and graph |
· Readout of continuous
data up to 500 data
· Display by graph
· Display of all data
· Display of specified data
(100 points/10 points
selectable
· Maximum, minimum,
and average |
|
Datalogging and
Graphic Display |
· Measuring cycle: 0.5 to 10 seconds
· Chart speed: 10-second, 1-minute, 5-minute, 10-minute, 1-hour, 2-hour screen (6-step selection)
· Scroll function: Chart time axis can be scrolled after measurement stop or reply of data stored
· Temperature range: auto-range or fixed range is selectable
· High/low alarms |
|
Storage Type |
· File for replay of trend graph |
· Storage of 30 points
data base |
|
|
| | | |
|
