| Power Line Monitor OM-PQR1010 |
|
| • |
Measures All Types of Disturbances Including Spikes, Sags, Surges, Common Mode Noise, High Frequency Noise, Dropouts, Power Failures
|
| • |
Datalogging - Stores Average Reading Every Minute for up to 11 Days on Each Channel
|
| • |
1500 Event Storage Per Input, 9000 Events Total for 6 Channels
|
| • |
Records Magnitude, Time and Date of Each Disturbance |
|
Electronic equipment is damaged more often by power disturbances than by fire, theft and vandalism combined. Intermittent power problems are the most expensive hidden expense to users of microprocessor-based equipment.

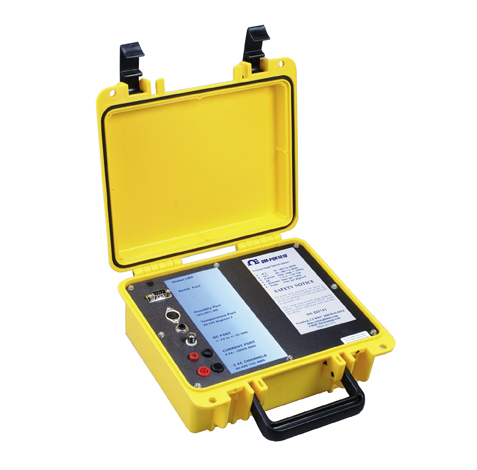

The OM-PQR1010 power quality recorder is a state-of-the-art, fully integrated instrument that measures, records and reports power disturbances, aiding in the analysis of power quality in medical, commercial and industrial applications.
The OM-PQR1010 monitor unit will detect a wide range of power disturbances including spikes, sags, surges, common mode noise, dropouts and high frequency noise on two phases of ac voltage and one dc voltage channel; it will also test the temperature, humidity and ac current. For ac current measurement, the OM-PQR1010 is equipped with a pair of banana jacks designed to accept a 10 mV/output current transducer (CT). Disturbances detected on multiple channels are recorded by their time, date, magnitude and duration in a non-volatile RAM memory. Stored data can then downloaded and analyzed by connecting the OM-PQR1010 to your PC’s serial port and running the included Windows data analysis software. Input connections to the OM-PQR1010 are made between the safety connectors on the back of the unit and the circuit panel to be tested. The OM-PQR1010 operates on standard 110 Vac/220 Vac power. Once plugged in, the OM-PQR1010 immediately begins testing the signals on the input connectors.
Specifications
GENERAL
Summary Event Count: 56,000 of each event type
Detail Storage: 1500 events per channel
Data Retention: 5 years without power
Data logging Sample Rate: programmable from 1 reading per second to 1 reading per 4 minutes
Impulse Detection: 500 nanoseconds
Communications: RS-232, 1200 to 19,200 baud (programmable), 8 data bits, 1 stop bit, no parity
Input Connections: ac voltage, safety banana jacks; dc voltage, BNC; current (CT), banana jacks; temperature, phone jack; humidity, mini-DIN
Operating Temperature: 0 to 50oC (32 to 122°F), 10 to 80% RH non-condensing
Operating Voltage: 12 to 30 Vdc, 80 to 260 Vac
Operating Current: 0.1 A
Operating Line Frequency: dc to 400 Hz
Weight: 1.8 kg (4 lb)
Dimensions: 203 mm H x 254 mm W x 51 mm D (8 x 10 x 2")
Power Cord: 1.8 M (6')
AC/DC VOLTAGE CHANNELS DATA LOGGING
Range: ac voltage, 80 to 520 Vac RMS; dc voltage, ± 1 to ± 52 Vdc
Accuracy: ± 1.5%
SAGS/SURGES
Threshold: 5% and 10% of average, or user programmed levels
Duration Limits: 1 cycle or 20 ms
Accuracy: ± 1.5%
DROPOUTS
Threshold: ac voltage, less than 10 V RMS; dc voltage, less than 10% of avg
Duration Limits: longer than 8 ms, shorter than 80 ms
POWER FAILURES
Threshold: ac voltage, less than 10 V RMS; dc voltage, less than 10% of avg
Duration Limits: longer than 80 ms
IMPULSES
Resolution: 2 channels: 20 V to > 2500 V peak
Threshold: 20, 70, 140, 300, 850, 2.5 kV
Duration Limits: 500 nanoseconds above threshold
Accuracy: ± 10%
HIGH FREQUENCY NOISE
Range: 2 volts peak, 10 kHz to 10 MHz
Accuracy: ± 10%
Response Time: 1 ms AC VOLTAGE LINE FREQUENCY
Range: 40 to 400 Hz
Accuracy: ± 1%
Response Time: 1 ac cycle
Threshold: ± 2% deviation from average
HUMIDITY CHANNEL DATA LOGGING
Range: 10% to 90% RH non-condensing
Accuracy: ± 5%
SAGS/SURGES
Threshold: 5% and 10% of average, or user programmed levels
Duration Limits: 2 seconds
Accuracy: ± 5%
CURRENT CHANNEL DATA LOGGING
Input: current transducer (CT), 10 mV/A output
Range: 0.2 A to 1000 A RMS
Accuracy: ± 1.5%
SAGS/SURGES
Threshold: 5% and 10% of average, or user programmed levels
Duration Limits: 20 ms
Accuracy: ± 1.5%
DROPOUTS
Threshold: less than 10% of average
Duration Limits: longer than 8 ms, shorter than 80 ms
POWER FAILURES
Threshold: less than 10% of average
Duration Limits: longer than 80 ms
TEMPERATURE CHANNEL DATA LOGGING
Sensor: semiconductor transistor
Range: -7 to 121°C (20 to 250°F) (0.02 to 2.5 Vdc)
Accuracy: ± 1%
Sample Rate: programmable from 1 reading per second to 1 reading per 4 minutes
SAGS/SURGES
Threshold: 5% and 10% of average, or user programmed levels
Duration Limits: 2 seconds
Accuracy: ± 1.5%
| |
|
|
