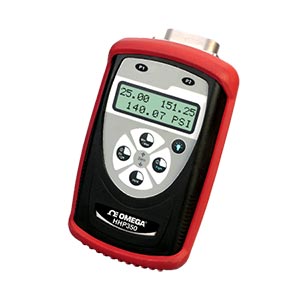

HHP350 Series

Smart Manometer

The OMEGA® HHP350 Series smart manometer brings high precision and value to handheld manometer users. Standard accuracy is ±0.05% FS, including temperature effects, with ±0.025% FS optional. Models are available for gage, absolute or differential pressure with available ranges from 58 mbar (28 inH2O) to 138 bar (2000 psi). Additional features for the HHP350 Series include MIN/MAX capture, adjustable damping rates, and user selectable auto shut-off time period. It can also document up to 240 readings automatically or manually. Saved readings can be recalled at any time. SPECIFICATIONS Accuracy:     HHP351: ±0.05% FS (except     HHP351-A: ±0.1% FS)     HHP352: ±0.025% FS Storage Temperature: -5 to 50°C (23 to 122°F) Operating Temperature: -40 to 60°C (-40 to 140°F) Temperature Effects: No temperature effect over the entire operating range Engineering Units: Inches of H2O [select 4°C, 20°C, 60°F], psi, mm of Hg, cm of Hg, inches of Hg, mBars, Bars, kPa, kg/cm2, and user selectable scaling Proof Pressure: 2x range on gage and absolute units, 2x range on differential units when pressurized on high side only and 10.3 bar (150 psi) static when applied to both sides of the sensor simultaneously Pressure Port: 1/8 NPT-F Media Compatibility: Differential clean, dry non-corrosive gases only, gage or absolute models for fluids compatible with 316L SS Battery: 4 "AA" batteries (included) Battery Life: >100 hours continuous Dimensions: 165 H x 91 W x 57 mm D (6.5 x 3.6 x 2.25") Weight: 400 g (14 oz)
