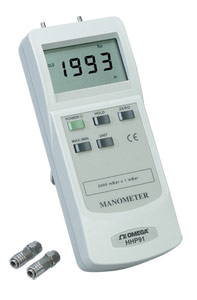

HHP91

Economical Manometer Single or Differential Inputs

Model HHP91 is a precision manometer for automotive, HVAC, laboratories, and general industrial applications. The unit comes complete with a built-in sensor with dual inputs for gage or differential measurements. It is compatible with air or non-corrosive and non-ionized gases and liquids. Either port measures the full range. P1 is positive with increasing pressure, P2 is negative with increasing pressure. Eight selectable pressure ranges make this instrument compatible with all measuring systems. The readings are easy to read, displayed in large 15 mm (0.6") high digits. SPECIFICATIONS Units: psi, mbar, kg/cm2, mmHg, inHg, mH2O, inH2O, atm Functions: Auto off (after approx. 20 min), reading hold, min and max Accuracy: 2% FS, 23 ±5ºC, includes linearity, repeatability and hysteresis Operating Temperature: 0 to 50ºC (32 to 122ºF) Operating Humidity: <80% RH (non-condensing) Power: 9V alkaline battery (included) Sampling Time: Approximately 0.8 seconds Pressure Ports: Quick disconnect for 3 to 4 mm ID tubing Meter Dimensions: 185 H x 78 W 38 mm D (7.2 x 3.0 x 1.4") Meter Weight: 345 g (0.8 lb)
