HHVB82

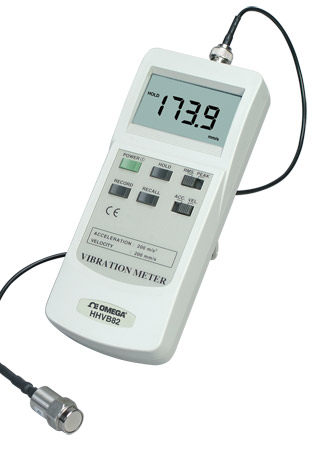

All industrial machinery vibrates. Monitoring the level of vibration is a useful guide to a machine’s condition. Poor balance, worn bearings, misalignments, and loose fittings in the structure will increase levels of vibration. By monitoring vibration levels, you can determine when machinery needs maintenance. The HHVB82 vibration meter, with its magnetic mount vibration sensor, is the ideal tool for this application. SPECIFICATIONS RMS or Peak Vibration Readings (Peak value = 1.414 RMS value) Acceleration Range: Up to 200 m/sec2 Velocity Range: Up to 200 mm/sec Frequency Range: 10 Hz to 1 kHz; sensitivity meets ISO 2954 Functions: Auto off (after approx 20 min), reading hold, record minimum and maximum Accuracy: ±5% +2 digits reading, 160 Hz, 80 Hz @ 23 ±5ºC Calibration Point: Velocity 50 mm/sec (160 Hz), acceleration 50 m/sec2 (160 Hz) Operating Temperature: 0 to 50ºC (32 to 122ºF) Operating Humidity: <80% RH (non-condensing) Power: 9 V alkaline battery (included) Sampling Time: Approximately 1 sec Meter Dimensions: 185 H x 78 W x 38 mm D (7.3 x 3.1 x 1.5") Sensor Dimensions: 16 D x 29 mm H (0.6 x 1.4") Sensor Cable Length: 1.2 m (4 ft) Meter Weight: 274 g (0.6 lb) Sensor Weight: 38 g (0.08 lb)
