Unique Design Facilitates Ease of Maintenance Cleaning Processes

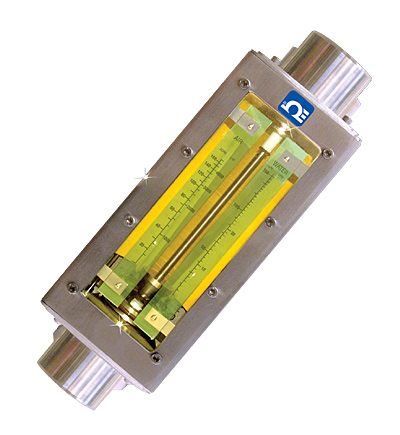

The FLD100 Heavy-duty flowmeters are fully enclosed in a brushed stainless steel case. Ideal for industrial applications with flow rates up to 116 GPM and 250 SCFM. Used with industrial water and air service. Meters are graduated for direct reading of water and air. Flow meters come with FNPT end fittings for easy in-line installation.
| Model No. |
Max Flow Rate |
Water
GPM |
AIR
SCFM |
Water
L/min |
Air
L/min |
Tube
Size |
| FLD101 |
0.25 |
1.2 |
0.95 |
35 |
3 |
| FLD102 |
0.36 |
1.7 |
1.3 |
50 |
3 |
| FLD103 |
0.76 |
3.3 |
3 |
90 |
3 |
| FLD104 |
1 |
4.2 |
3.7 |
120 |
4 |
| FLD105 |
1.5 |
6.5 |
5.6 |
180 |
4 |
| FLD106 |
2.2 |
8.5 |
8.2 |
250 |
4 |
| FLD107 |
3.8 |
16 |
14 |
475 |
5 |
| FLD108 |
5 |
21.5 |
18 |
650 |
5 |
| FLD109 |
6 |
25.5 |
20 |
725 |
6 |
| FLD110 |
7.4 |
30 |
27.5 |
900 |
6 |
| FLD111 |
9.6 |
40 |
35 |
1200 |
6 |
| FLD112 |
11 |
47.5 |
40 |
1400 |
6 |
| FLD113 |
14 |
62 |
50 |
1800 |
6 |
| FLD114 |
20 |
90 |
75 |
2600 |
6 |
| FLD115 |
22 |
90 |
83 |
2550 |
8 |
| FLD116 |
26 |
--- |
98 |
--- |
6 |
| FLD117 |
41 |
160 |
155 |
4531 |
9 |
| FLD118 |
44 |
180 |
167 |
5098 |
8 |
| FLD119 |
60 |
245 |
227 |
6938 |
9 |
| FLD120 |
61 |
250 |
231 |
7080 |
8 |
| FLD121 |
86 |
--- |
326 |
--- |
9 |
| FLD122 |
116 |
--- |
439 |
--- |
9 |
| Tube Size |
FNPT |
| 3 and 4 |
1/2" |
| 5 and 6 |
1" |
| 8 and 9 |
2" |
SPECIFICATIONS
Accuracy: ±3% of full scale
Minimum Flow Rate: Approx. 10% of max flow rate
Repeatability: ±0.5% of full scale
Max Pressure: [at 93°C (200°F)] 200 psi (tube sizes 3, 4, 5 and 6); 125 psi (tube sizes 8 and 9)
Max Operating Temperature: 93°C (200°F)
Wetted Parts: Include borosilicate glass flow tubes, FKM O-rings, and 316 SS fittings, guide rods, floats and float stops
|
