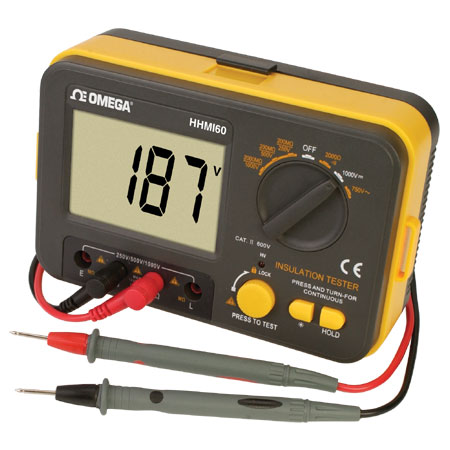

HHMI60 Series

HHMi60 is highly compact and easy to use insulation tester. This instrument is a digital insulation tester which adopts DC voltage converter of low consumption, high converter ratio, and inductance type energy storage to convert the voltage of 9V DC into 250V/500V/1000V DC. With digital bridge, the instrument can test insulation and its main features include easy to operate, wide test range, highly stable performance, backlit LCD display, data hold and auto power off. It is an ideal instrument that can be used in testing insulation of electric machines, cables, electronic equipments, electric facilities, and more. Special Functions Continuity Alarm: Less than 30Ω ± 10Ω Low Battery Indication: Less than approx.7.5V Data Hold: Yes LCD Backlight: Approximately 10 Seconds Function Protection: Yes Input Impedance: 1MΩ Sampling Rate: 3 times/Sec. AC Frequency Response: 40-200Hz Operation Method: Manual range Max Display: 1999 LCD Size: 75 x 52 mm Power Source: 1.5V AA battery x6pcs, or external DC 9V power (included) Power Consumption: Quiescent current approx.3 mA Weight: 580g (including battery) Meter Size: 176 L x 116 W x 62.5 D mm 6.93 x 4.56 x 2.46")
