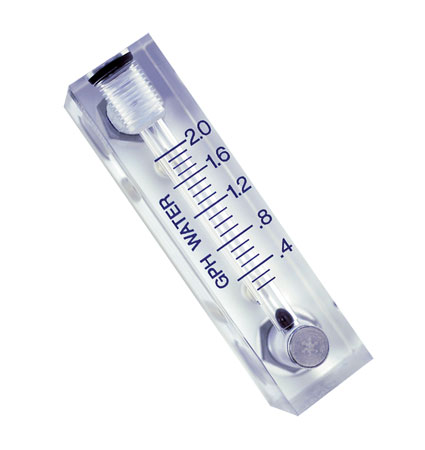

| Acrylic Flowmeters FL-2000 |
|
| • |
FEATURES:
|
| • |
Easy-to-Read English or Metric Scales
|
| • |
Water Ranges from 4 CCM to 20 GPM, Air Ranges from 40 CCM to 4000 LPM
|
| • |
Threaded Brass Inserts for Quick Installation
|
| • |
Easy Disassembly and Assembly for Maintenance
|
| • |
Durable One-Piece Clear Acrylic Construction
|
| • |
Stable, Easy-to-Read Float
|
| • |
Superior Quality
|
| • |
APPLICATIONS:
|
| • |
Air Sampling Equipment
|
| • |
Aquaculture
|
| • |
Desalinization Equipment
|
| • |
Gas Analyzers
|
| • |
Medical Systems
|
| • |
Photo Processing Equipment
|
| • |
Water Treatment and Distribution Systems
|
|
The FL-2000 Series offers a wide variety of precision flowmeters for use in medical, industrial, chemical, and laboratory applications at an economical price. Units are available with or without valves.
SPECIFICATIONS
Accuracy:
Models FL-2001–FL-2025: ±5% F.S.
Models FL-2031–FL-2069: ±3% F.S.
Models FL-2071–FL-2128: ±2% F.S.
Float: Black glass stainless steel
Body: Clear acrylic
Seals: Buna O-Rings with brass or PVC fittings FKM O-Rings with stainless steel fittings
Pressure: 100 psig max @ 21°C (70°F)
Temperature: 65°C (150°F) max @ 0 psig
Fittings: Brass std; stainless steel optional except for FL-2071 through FL-2128, which have 1 NPT PVC fittings only
Valves:
Models FL-2001 through FL-2069: brass standard; stainless steel cartridge type (optional)
FL-2071 through FL-2128: optional plastic in-line gate | | |
 |
| |
|
