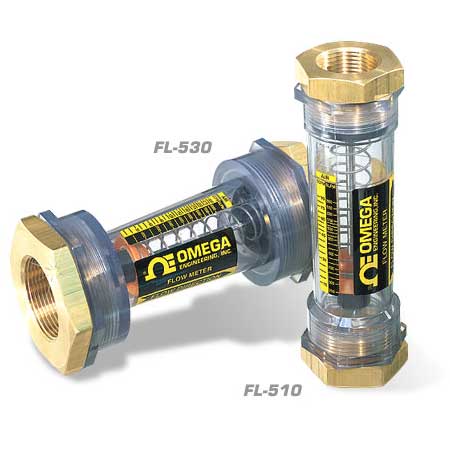

| In-line Flow meters for Use With Water and Air FL-500 |
|
| • |
Direct Reading in GPM, LPM, SCFM, and SLPM
|
| • |
Scales for Air and Water
|
| • |
Fluid is Always in View
|
| • |
Mount in Any Position
|
| • |
Easy to Clean and Maintain
|
| • |
±5% Full Scale Accuracy
|
The FL-500 Series in-line flowmeters feature rugged construction, easy installation and direct reading flow rates for water and air at atmospheric and 90 psi pressures. For added versatility, the FL-500 Series can be ordered with an electric proximity switches (order separately, see the FL-500-R for complete details) to signal specific flow rates. Settings are easily adjustable with a screwdriver.
SPECIFICATIONS
Accuracy: ±5% FS
Construction:
Flow tube and float: PVC
Internal Wetted Parts: 316 SS end fittings
Brass, Female NPT Seals: FKM
Liquid Service: 200 psig @ 21°C (70°F)
Gas Service: 100 psig @ 21°C (70°F)
Maximum Temperature: 66°C (150°F) @ 25 psig
Pressure Drop: 4 psig Full Scale
Dimensions: 177.8 mm (7") long
FL-505 thru FL-515: 50.8 (2") diameter
FL-530 thru FL-550: 76.2 (3") diameter | | |
 |
| |
|
