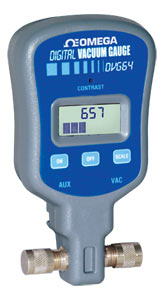

| Digital Vacuum Gauge with LCD Readout DVG-64 |
|
DVG-64
| • |
Reads Vacuum in 7 Units of Measure
|
| • |
Reads 12,000 to 0 microns
12 to 0 Torr
|
| • |
Auto Shut-off
|
| • |
Built in Hanger
|
| • |
Cleanable Sensor
|
 |
The OMEGA DVG-64 delivers high precision at a low price. It can accurately read vacuum from 12,000 microns down to 0 over a wide temperature range of 35° to 125°F (2° to 52°C). The vacuum can be displayed in user selectable units.
SPECIFICATIONS
Display: Updated every 1/2 second. 1 micron resolution below 200 microns Sensor
Type: Thermistor Connector Type: Standard 1/4 inch flare fitting Vacuum
Range:
0-12,000 microns (0-1600 Pascals) with vacuum increasing/decreasing indicator when above 12,000 microns
Scale Units:
Microns, PSI, InHg, millibars, Pascals, Torr, millitorr
Operating Temperature Range:
35F to 125F (2C to 52C)
Overpressure:
300 PSI max (20 Bar) Accuracy: +/- 10% (0-1000 Microns)
Power Source:
9 Volt Alkaline Battery (included)
Continuous Usage:
Over 35 Hours
Auto Shutoff:
After 10 minutes when vacuum reading is above 12,000 microns
Weight:
6.7 ounces
Dimensions:
140 x 76 x 32 mm (5.5" H x 3" W x 1.25" D) | | |
|
|
|
|
