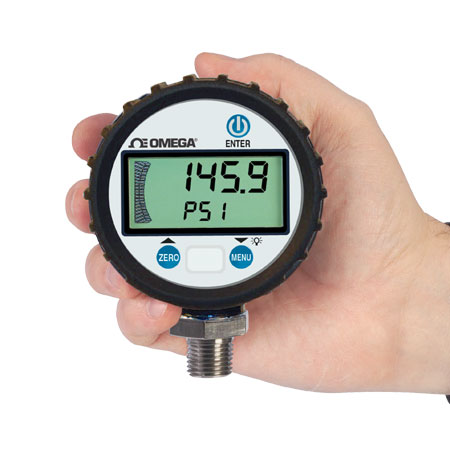

DPG8001 Series

The DPG8001 Series digital pressure gauges offer 0.25% full scale terminal point accuracy in a rugged easy-to-use unit and is price comparable to that of mechanical test gauges. All Stainless Steel wetted parts make them suitable for a wide variety of industrial liquids and gaseous media. This series features user-selectable engineering units, allowing one gauge to be used for a variety of pressure scales. The DPG8001 comes standard with many features that are either not available or extra cost options on many competitive digital gauges such as a tare, 20 segment bar graph MIN/MAX Memory, 9 selectable engineering units and backlighting for easy reading. SPECIFICATIONS Accuracy: 0.25% FS terminal point Ranges: Vacuum through 25,000 psi gauge, vacuum and compound gauge Battery: Two “AA” alkaline included Battery Life: 2000 hr. minimum Battery Indicator: 4 levels Storage Temperature: -20 to 80°C (-4 to 176°F) Operating Temperature: -20 to 60°C (-4 to 140°F) Temperature Effects: 0.04%/°F (-20 to 180°F) zero and span Update Rate: 1 Hz Cycle Life: 100 million Vibration: MIL-STD-202G Method 201A Shock: MIL-STD-202G Method 213 B Display: 5-digit numeric top line, 5 character alphanumeric lower line Bar Graph: 20 segment vertical bar graph Digit Height: 12.2 mm (0.48") upper line; 6.1 mm (0.24") lower line Display Indicators: 4-segment battery life indicator plus dedicated icons for gauge timer, backlight timer, tare, min and max View Angle: 12 o’clock Backlight: Standard, blue Enclosure Material (Case and Back): Polycarbonate/ABS Window: Polycarbonate Enclosure Rating: NEMA 4X (IP65) Protective Boot: Standard Serial Number: Yes Proof Pressure     Vac to <300 psi: 200% range     300 to <5000 psi: 150% range     5000 to 25,000 psi: 120% range Burst Pressure     Vac to <300 psi: 800% range     300 to <5000 psi: 500% range     5000 to 25,000 psi: 300% range Keypad Functions 3 Key with Multi Press Functionality     On/Off: Power symbol and enter     Zero: Zero, tare, and scroll up arrow     Menu: access, backlight, down arrow Engineering Units: psi, bar, inHg, cmHg, mmHg, kPa, mPa, kg/cm2, ftH2O, custom units available Agency Approvals: CE (heavy industrial), ASME B40.7, RoHs, UL 61010/cUL pending Connection: 1/4 NPT male, lower position up to 10,000 psi     >10,000 psi: 9/16-18 UNF Female AMINCO Dimensions: 27 mm Hex (11/16") Wetted Parts: 17-4 SS & 316L SS laser welded
