PHH-SD1
| • |
LCD with Green Light Backlighting
|
| • |
0 to 14 pH or ±1999 mV for ORP Measurement
|
| • |
Real Time SD Memory Card Data Logger (SD Card Included)
|
| • |
Automatic Buffer Calibration (Buffers Sold Separately)
|
| • |
RS232/USB Interface (Optional Cable)
|
| • |
Automatic Temperature Compensation (Optional Probe)
|

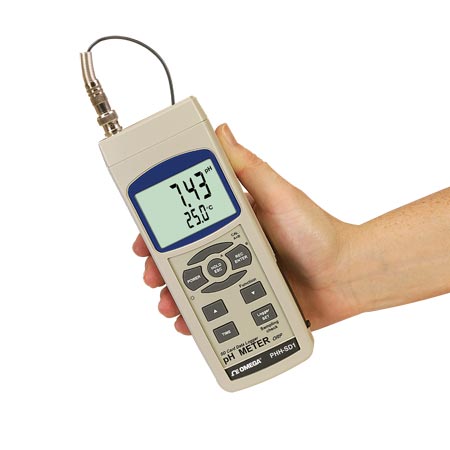

The OMEGA® PHH-SD1 is innovative and easy to operate. What sets the PHH-SD1 apart from other pH/ORP meters is that it incorporates a real-time SD card data logger. The PHH-SD1 measures pH or mV (ORP) using standard electrodes with BNC connectors. Download data from the SD card directly into an Excel spreadsheet. This allows the user to do further data or graphical analysis without special software. The PHH-SD1 has a wide variety of applications from water conditioning, aquariums, beverage manufacturing and fish hatcheries to food processing, photography, paper and plating industries, educational and other laboratories.
SPECIFICATIONS
Display: 52 x 38 mm (2.04 x 1.5") LCD with switchable green backlight
Measurement: 0 to 14 pH or -1999 mV to 1999 mV (ORP)
Sampling Time:
Auto: 1 second to 8 hrs 59 min 59 sec
Manual: Push the data logger button once will save data one time
Memory Card: SD memory card
Temperature Compensation: Automatic (with optional temperature probe) or manual
Display Update: At 1 second
Data Output (RS232/USB): With optional cable/software
Operating Temperature: 0 to 50°C (32 to 122°F)
Operating Humidity: Less than 85% RH
Power: 6 “AAA” alkaline batteries (included), or 9V power adaptor (optional)
Current Draw: 14 mA DC (without SD card or backlight), 49 mA (all functions)
Weight: 489 g (1.08 lb)
Dimensions: 177 H x 68 W x 45 mm D (6.96 x 2.67 x 1.77")
Input Impedance: 10^12 Ω Manual Temperature Compensation: Pushbutton on front panel
Automatic: With the optional temperature measurement probe from 0 to 65°C (32 to 149°F)
Calibration: pH4, pH7, and pH10, 3 points calibration provides the best linearity and accuracy
|
