HHTQ88

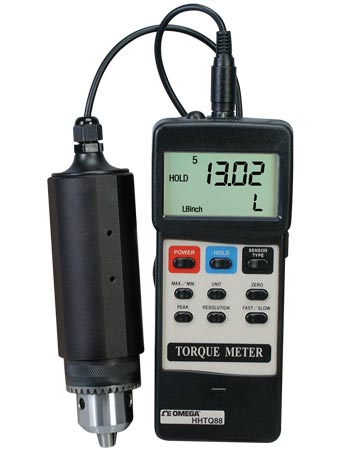

The HHTQ88 is a precision test instrument for automotive, automation, laboratories, and general industrial applications. The unit comes complete with the torque sensor with built-in 12 mm (0.5") chuck and chuck key. Three selectable torque units (kgf-cm, lb-in, N-cm) give this instrument almost universal compatibility with all measuring systems. The HHTQ88 also has fast and slow sampling rates to fit most automation applications. The readings are easy to read, displayed in large 15 mm (0.6") high digits. The RS232 serial interface allows you to download data for use in your data logging or recording programs. SPECIFICATIONS Units: kgf-cm, lb-in, N-cm (N = Newtons) Range: Up to 15 kgf-cm Safe Overload: 150% of range Functions: Auto off (after approx 20 min), reading hold, min and max Accuracy: ±1.5% FS +5 digits, 23 ±5ºC, includes linearity, repeatabilityand hysteresis Operating Temperature: 0 to 50ºC (32 to 122ºF) Operating Humidity:<80% RH (non-condensing) Sensor Chuck: 12 mm (0.5") Power: 9 V alkaline battery (included) Sampling Time: Fast: Approximately 0.125 sec Slow: Approximately 0.334 sec Data Output: RS232 PC serial output Meter Dimensions: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3") Sensor Dimensions: 48 D x 160 mm L (1.9 x 6.3") Meter Weight: 225 g (0.5 lb) Sensor Weight: 665 g (1.5 lb) Sensor Cable: 1 m (39")
