RTD and Thermistor Extension Wire
• RTD wire for Extending RTD and Thermistor Signal Leads
• High Temperature Glass, PFA and Polyvinyl Wire Insulation

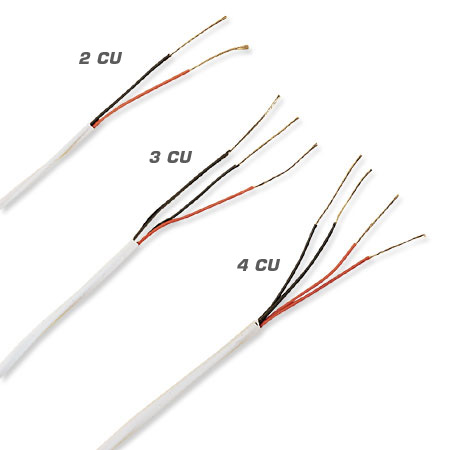

• Wire Available with 2, 3 and 4 Conductors
• AWG 20 solid, 24 or 26 stranded
• Spool Lengths in Feet or Meters
|
Insulation |
Model
Number |
Number of
Conductors |
Type
Wire |
Insulation |
Max. Temp. |
Nominal
Size (mm) |
Wt.*
kg/300m |
|
Conductor |
Overall |
°F |
°C |
|
Glass |
EXGG-2CU-20 |
2 |
Solid |
Glass Braid |
Glass Braid |
900 |
482 |
1.52 x 2.41 |
4 |
|
EXGG-2CU-26S |
2 |
7 x 34 |
Glass Braid |
Glass Braid |
900 |
482 |
1.52 x 1.32 |
2.2 |
|
EXGG-3CU-26S |
3 |
7 x 34 |
Glass Braid |
Glass Braid |
900 |
482 |
1.52 x 1.63 |
3.1 |
|
EXGG-4CU-26S |
4 |
7 x 34 |
Glass Braid |
Glass Braid |
900 |
482 |
1.52 x 1.66 |
4.1 |
|
Neoflon®
PFA |
EXTT-2CU-26S |
2 |
7 x 34 |
PFA |
PFA |
500 |
260 |
1.07 x 1.73 |
2.2 |
|
EXTT-3CU-26S |
3 |
7 x 34 |
PFA |
PFA |
500 |
260 |
1.83 |
4.1 |
|
EXTT-4CU-26S |
4 |
7 x 34 |
PFA |
PFA |
500 |
260 |
2.08 |
4.1 |
|
Polyvinyl |
EXPP-2CU-24S |
2 |
7 x 32 |
Polyvinyl |
Polyvinyl |
221 |
105 |
2.08 x 3.40 |
4.5 |
|
EXPP-3CU-24S |
3 |
7 x 32 |
Polyvinyl |
Polyvinyl |
221 |
105 |
4.22 |
6.3 |
* Weight of spool and wire rounded up to the next highest kg. (does not include packing material). |
|
|
