High Temperature Inconel Overbraided Ceramic Fiber Insulated Thermocouples
• High Temperature Ceramic Insulation with Inconel Overbraid
• Flexible, Abrasion Resistant
• Withstand Temperatures up to 1090°C (2000°F)
• Unexcelled Oven and Furnace Profiling
• Five Convenient Styles for Easy Application
• J, K, E or N Thermocouple Calibrations
Unique OMEGA® family of high temperature types J, K, E or N thermocouples are double-protected with abrasion-resistant Inconel overbraid with high temperature ceramic fiber insulation. A temperature rating of 980°C (1800°F)continuous service and 1090°C (2000°F) short-term service makes these products ideal for many high temperature measurement applications. They are unexcelled for profiling ovens and furnaces. The 20-gage solid conductor thermocouple wires are insulated with braided Nextel® ceramic Over the ceramic fiber is a rugged overbraid of Inconel 600® –a tough, high-temperature, high nickel content alloy. Five convenient styles are available in 3 ft. and 10 ft. lengths for high temperature measurement applications.
Specifications
Wire Gage: 20 gage solid–standard limits of error
Insulation: Nextel® ceramic fiber
Overbraiding & Fittings: Inconel 600®
Temperature: 980°C (1800°F) continuous,1090°C ( 2000°F) short-term service, depending on thermocouple type.

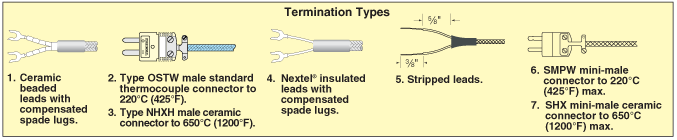

Termination: Ceramic beaded leads with compensated spade lugs, OMEGA® OSTW 220°C (425°F) male connector, or OMEGA® NHXH high temperature 650°C (1200°F) ceramic male connector

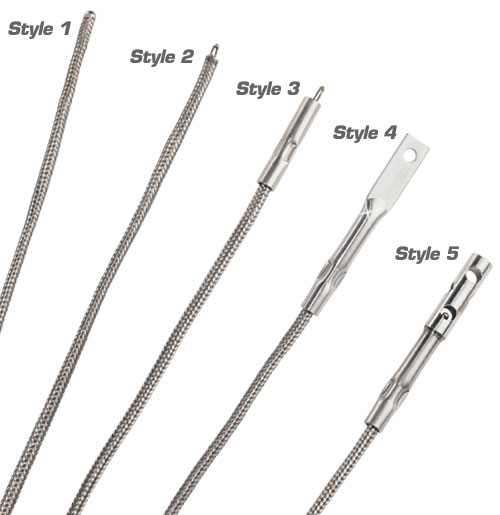

Probe Style
|
Style 1 |
|
A grounded junction thermocouple with the Inconel overbraid welded to form a smooth rounded tip for all general purpose applications. |
|
Style 2 |
|
A general purpose, bead welded, exposed junction thermocouple. |
|
Style 3 |
|
An exposed junction, bead welded junction thermocouple with an Inconel collar to clamp the probe to a surface, or to secure it into a hole or any fabrication. |
|
Style 4 |
|
Grounded junction. It can be bolted to a surface, or the Inconel eye can hook the thermocouple to a conveyor flight. Ungrounded junction versions are available. Contact sales for more information. |
|
Style 5 |
|
Has an Inconel air hood to protect the beaded wire exposed junction. This design can be clamped to a surface, hooked to a conveyor flight, or bolted to a surface by using the through hole at the open end of the hood. |
|
Model Number |
Probe Style |
Termination Type |
|
XCIB-(*)-1-1-(**) |
1 |
1 |
|
XCIB-(*)-1-2-(**) |
2 |
|
XCIB-(*)-1-3-(**) |
3 |
|
XCIB-(*)-1-4-(**) |
4 |
|
XCIB-(*)-2-1-(**) |
2 |
1 |
|
XCIB-(*)-2-2-(**) |
2 |
|
XCIB-(*)-2-3-(**) |
3 |
|
XCIB-(*)-2-4-(**) |
4 |
|
XCIB-(*)-3-1-(**) |
3 |
1 |
|
XCIB-(*)-3-2-(**) |
2 |
|
XCIB-(*)-3-3-(**) |
3 |
|
XCIB-(*)-3-4-(**) |
4 |
|
XCIB-(*)-4-1-(**) |
4 |
1 |
|
XCIB-(*)-4-2-(**) |
2 |
|
XCIB-(*)-4-3-(**) |
3 |
|
XCIB-(*)-4-4-(**) |
4 |
|
XCIB-(*)-5-1-(**) |
5 |
1 |
|
XCIB-(*)-5-2-(**) |
2 |
|
XCIB-(*)-5-3-(**) |
3 |
|
XCIB-(*)-5-4-(**) |
4 |
* Specify Thermocouple Type: J: Iron-Constantan, K: CHROMEGA®-ALOMEGA®, E: CHROMEGA®-Constantan, N: OMEGALLOY®-NICROSIL-NISIL Use prefix of “ CAL-” for assemblies to be supplied with calibration data at specified temperatures. Check Sales Dept. for pricing
** Specify length in feet. 3' or 10' standard
Note: Available with Silica insulation. Change “XCIB” in model number to “XSIB”. No additional charge. |
