Surface Thermocouple with Self-Adhesive Backing - Package of 5
• Patented Spool Caddy
• Self Adhesive Backing for Easy Installation
• Better Than 0.3 Second Response Time
• 1 m (40") or 2 m (80") Color-Coded PFA Insulated Leads
• Rated to 175°C (350°F) Long Term
• Available in J, K, T, and E Calibrations
OMEGA’s self-adhesive thermocouple temperature sensors have now been expanded to include the popular miniature connector with our patented spool caddy. The spool caddy provides a convenient way to store the thermocouple wire that is not needed for the application.
Specifications
Thermocouple Calibrations: J (Iron-Constantan), K (CHROMEGA®-ALOMEGA®), T (Copper Constantan), E (CHROMEGA®-Constantan)
Adhesive: Silicon based cement
Maximum Temperature: 175°C (350°F) continuous
Minimum Temperature: -60°C (-75°F) continuous

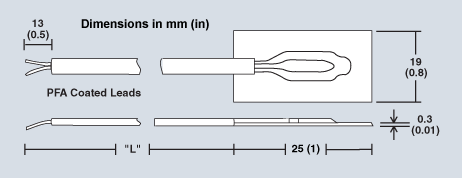

Dimensions: 25 L x 19 W x 0.3 mm (1 x 0.8 x 0.01")
Laminates: High temperature polymer, and fiberglass reinforced polymer layers
Wire: 30 AWG PFA-coated
Adhesive Pad (TAP): Polymide Film with a silicone pressure sensitive adhesive.
13% Polymide, 32% Polymethyl phenylsiloxane, 54% Saturated Paper
|
Model No.-ANSI Color Code |
Wire
Gage |
Length
meter(in) |
Insulation |
|

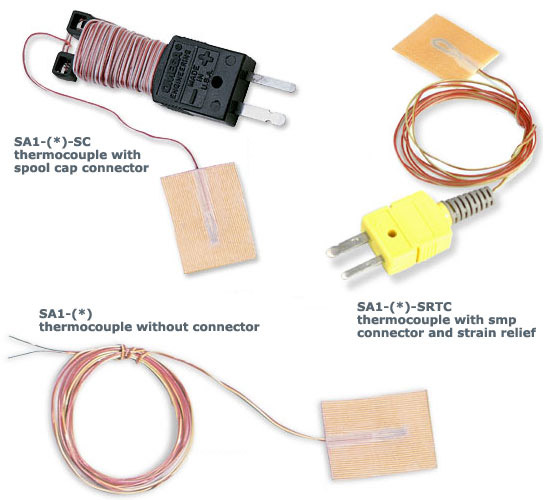

Thermocouple with Stripped Leads |
Thermocouple with Spool Cap Connector |
Thermocouple with SMP connector and Strain Relief |
|
SA1-J |
SA1-J-SC |
SA1-J-SRTC |
30 |
1 (40) |
PFA |
|
SA1-K |
SA1-K-SC |
SA1-K-SRTC |
30 |
1 (40) |
PFA |
|
SA1-T |
SA1-T-SC |
SA1-T-SRTC |
30 |
1 (40) |
PFA |
|
SA1-E |
SA1-E-SC |
SA1-E-SRTC |
30 |
1 (40) |
PFA |
|
SA1-J-72 |
SA1-J-72-SC |
SA1-J-72-SRTC |
30 |
2 (80) |
PFA |
|
SA1-K-72 |
SA1-K-72-SC |
SA1-K-72-SRTC |
30 |
2 (80) |
PFA |
|
SA1-T-72 |
SA1-T-72-SC |
SA1-T-72-SRTC |
30 |
2 (80) |
PFA |
|
SA1-E-72 |
SA1-E-72-SC |
SA1-E-72-SRTC |
30 |
2 (80) |
PFA |
Note: 2 m (80") is the longest length available with spool caddy.
NIST Traceable certification is available for this product - Consult Sales or Engineering |
