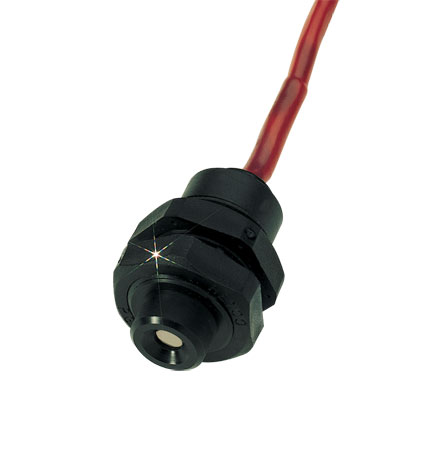

Fixed Mount Infrared Thermocouples with ABS Plastic Housing

• 1:2 (60°) Field of View

• J, K, E or T Thermocouple Output Signal

• Works with Standard Thermocouple Indicators and Controllers

• Self-Powered

• No Moving Parts

• Temperature Compensated

• Measurements to 290°C (550°F)

• High Strength ABS Plastic Housing Meets NEMA Ratings

The new OS36-01 Series of infrared thermocouples are a revolutionary addition to OMEGA’s expanded line of infrared thermocouples. These units feature an exceptionally strong, hermetically sealed ABS plastic housing that makes non-contact infrared temperature measurement more economical. The threaded head can be securely mounted through a bulkhead or threaded into a tapped hole. The OS36-01 Series produce repeatable temperature readings for use in a wide variety of process monitoring and quality control applications.
