Hermetically Sealed Tip Insulated Thermocouples

• Available in 40", 80", and 120" Lengths

• Hermetically Sealed

• Highly Resilient to Chemicals and Oils

• Electrically-Insulated Junction

• Easily Cleaned and Sterilized

• Small Size Provides a Fast Response

• Rated to 250°C (482°F)

• 24 AWG Stranded Thermocouple Grade Wire Standard
20 AWG Stranded Construction is Available for Longer Lengths

• Response Time = 4.5 Seconds Max in Water Flowing at 3 Feet per Second (63%)

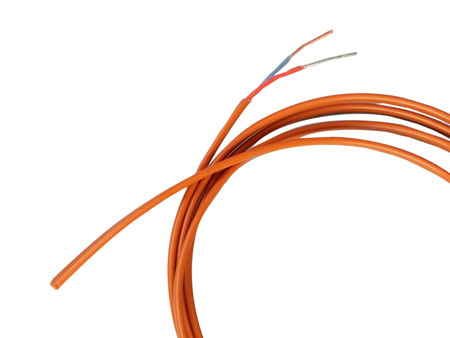

These PFA insulated thermocouple wire sensors are hermetically sealed at the sensor tip to provide continuous PFA protection over the measurement junction. This hermetic seal design provides a small, flexible, and electrically isolated thermocouple, suited to a variety of applications.

When using longer lengths, #20AWG stranded wire construction is available to reduce sensor resistance.
