| Compression Load Cells LC302,LCM302 Series |
|

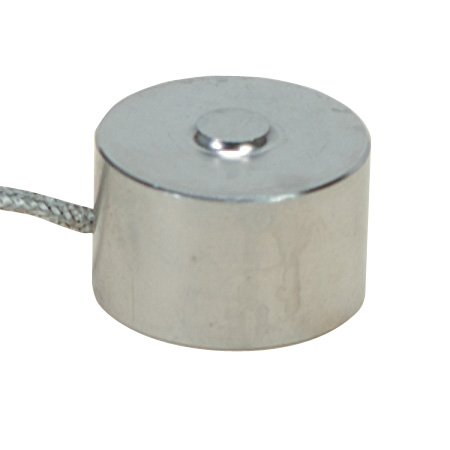

0.75" Diameter Stainless Steel Compression Load Cell

|
• |
Small 0.75" (19 mm) Dia. |
|
• |
Low 0.5" (13 mm) Profile |
|
• |
Robotic and Test Bench Applications |
|
• |
Built in Load Button for Easy Installation |
|
• |
5-Point Calibration with 59 kOhm Shunt Cal Data |
The LC302 Series is only 3/4" (19mm) in diameter and fits in the smallest places. Its high 0.5% accuracy and small package solve many industrial force measurement applications. All stainless steel construction and high quality strain gage assures long term reliability in industrial environments. |
|
