特点
· 测量范围广
· 小面积测量
· 放射率设定范围广
· 通过接触式温度传感器自动设定放射率
(对应型号：AR-6500)
规格
|
机种 |
AR-6500 |
AR-6501 |
AR-6500-H |
AR-6501-H |
R-100 |
R-150 |
R-160 |
|
对应 CE |
CE |
CE |
CE |
CE |
— |
— |
— |
|
测量范围 |
-50 to 500°C |
0 to 1200°C |
-50 to 500°C |
0 to 1200°C |
|
分辨率 |
0.1°C |
1°C |
1°C |
0.1°C |
1°C |
|
激光瞄准 |
◯ |
◯ |
◯ |
◯ |
— |
◯ |
◯ |
|
接触式 |
◯ |
◯ |
◯ |
◯ |
— |
— |
— |
|
测量精度 |
Table1 |
Table2 |
Table1 |
Table2 |
|
接点精度 |
±0.2°C at 25±10°C |
|
温度系数 |
±0.01% of full scale °C |
|
电源 |
Ni-Cd rechargeable battery (4AA) |
|
电池寿命 |
30 hours to (10 hours when laser is used continuously) |
|
使用环境 |
Operation : 0 to 40°C, 0 to 80%RH (Without Dew)
Storage : -20 to 50°C, 0 to 85%RH (Without Dew) |
|
模拟输出 Table3 |
— |
1mV / °C |
— |
1mV / °C |
— |
— |
— |
|
尺寸 |
App. 400g |
|

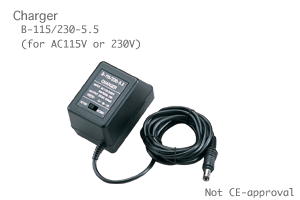

附件 |
Manual, Soft case, Lens cap, Charger |
|
— |
Output cable |
— |
Output cable |
— |
— |
— |
Table 1
AR-6500, AR-6501, R-100, R-150
|
非接触模式 |
250 to 500°C |
± (0.8% of reading + 1digit) |
|
0 to 250°C |
± (2°C + 1digit) |
|
-50 to 0°C |
± (3°C + 1digit) |
|
接触 |
-50 to 500°C |
± (0.05% of reading + 0.1°C) ±1digt |
|
|
|
Table 2
AR-6500-H, AR-6501-H, R-160
|
非接触模式 |
600 to 1200°C |
± (0.5% of reading + 1digit) |
|
250 to 600°C |
± (3°C + 1digit) |
|
0 to 250°C |
± (4°C + 1digit) |
|
接触 |
0 to 1200°C |
± (0.1% of reading + 1digit) |
Table 3
|
输出 |
1mV / °C |
|
精度 |
± (0.15% of F / S + 1mV) : at 25±5°C
± (0.15% of F / S + 1mV) ±0.01% of F / S
:except 25°C±5°C |
非接触模式
|
检测器 |
Thermopile |
|
波长 |
8 to 14μm |
|
精度 |
± (0.4% of reading + 1digit) |
|
反应时间 |
500ms (95%) |
|
A-常数调整 |
0.10 to 2.00 (0.01 step) |
|
激光瞄准 |
L2 models meet ICE Class2 |
接触式
|
输入 |
Thermocouple Type : K |
|
显示时间 |
500ms |

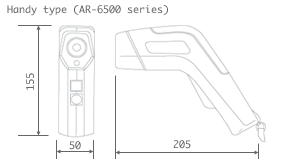

尺寸
附件
|
